How to replace the rear washer nozzle - The Guide

Post by MisterH » Sun Jun 21, 2020 4:59 pm

So I have now successfully completed this operation, I will now write this so others can benefit from it.

Those who try to remove the nozzle will find that it cannot be simply pulled out and replaced, it is a rather more complex process.

Step 1: remove the C-Pillar trim

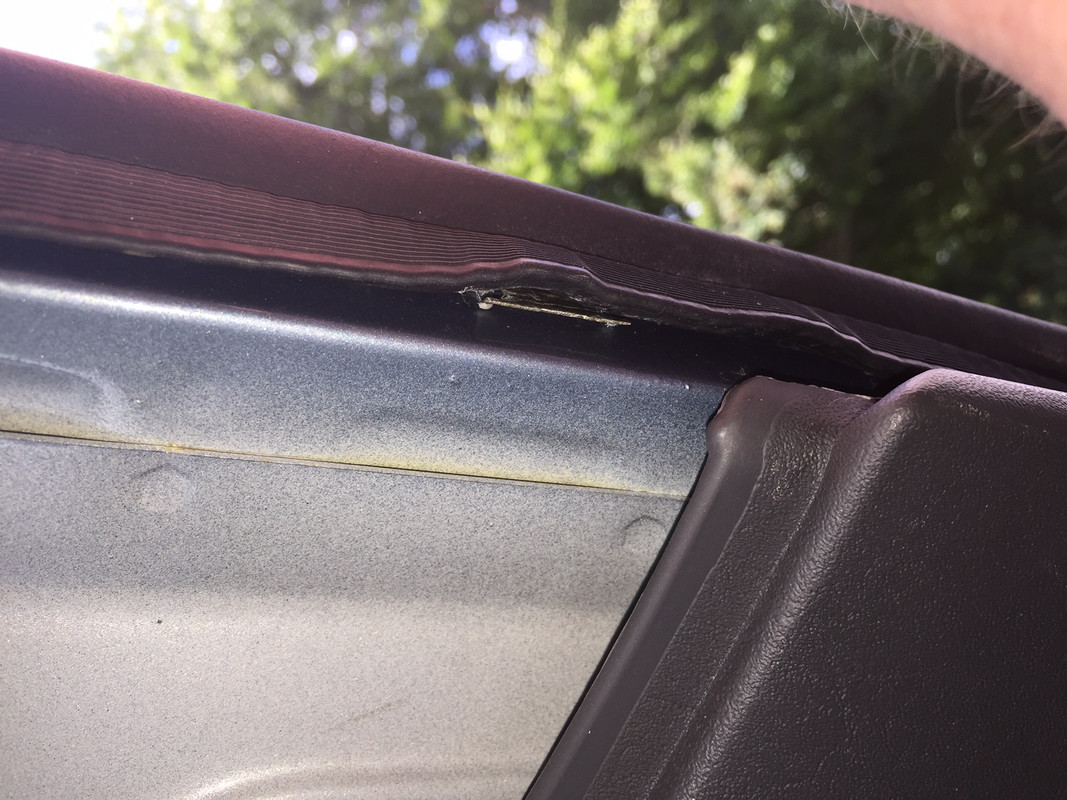

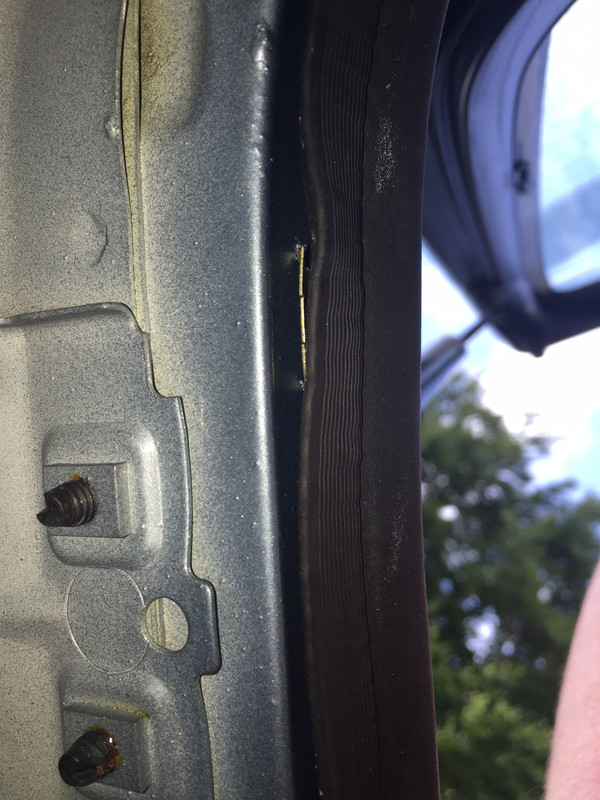

On first inspection this is a very solid piece of 480 trim, in order to remove it one has to look for the two brass coloured C-clips that hold it in place. These can be found hiding underneath the boot seal.


Now one can choose to be 'brutal' with them and eventually the piece will come out, but that runs the risk of snapping stuff. As I didn't quite know what I was doing, I loosened the rear wheel/seat belt trim that includes the storage bins, allowing me to pry the window side of the C-Pillar trim out with a screwdriver, it should just pop out gently.

For the C-Clips in the boot seal, just gently push them with a flathead and again the piece should pop out. Again you could be brutal but I can't recommend it

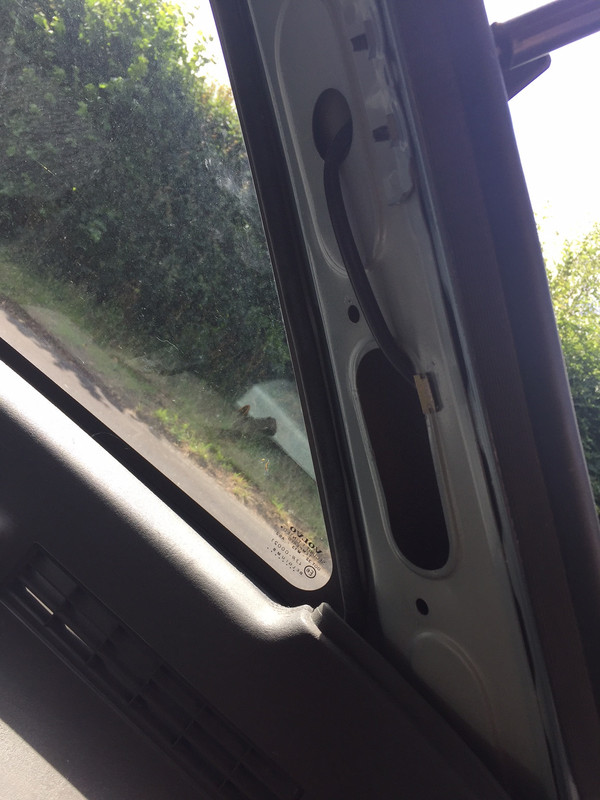

you should now see the exposed pillar:

Step 2: Undoing the nut
This sounds simple, but is more difficult than it sounds. The nut is located in a position which means that it cannot be got at by a spanner at all, or a ratchet easily. If you remove the water hose first, then a ratchet might do the job, however, I used a pair of pliers to slowly spin the nut until it came out. Be very careful at this stage as the nut can all to easily fall into the depths of the C-pillar, and I doubt many people want to structurally compromise their car in the name of a nut :crazy:.

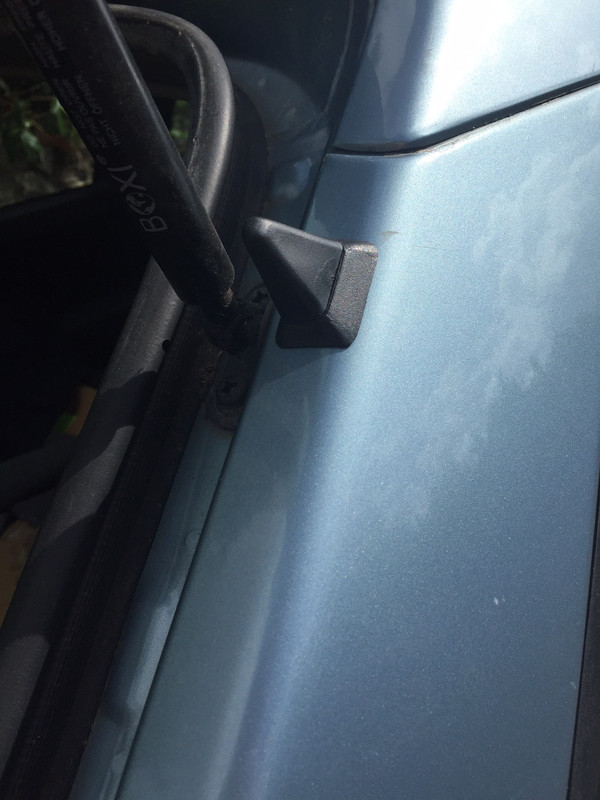

Step 3: Replacing the Nozzle

Perhaps the simplest part of the job is slotting the new nozzle unit into the hole. The nut can be seen to be difficult to replace so it is vital that the nut is placed onto the thread, but with the water hose attached behind it so it cannot fall off before you tighten it. The tightening can only be done with pliers unless you have a special tool the existence of which I am unaware of.

Step 4: Refitting the trim
"Refit is the reverse of removal" - St Haynes, Patron of lies and Misery

This is actually fairly straightforward, if you are well versed in 480 trim you shouldn't be phased. The C-Pillar trim just slots and clips in, and if you did loosen the seat belt/boot trim, then replace the screws as necessary.

One of the cases where that old saying does ring true


Conclusion

The first job I have carried out and completed unassisted physically, and I must say I am quite proud (I am probably blissfully unaware).

It is a fairly simple job, but the nut is in a really awkward position and so that is definitely a curveball

Many thanks to all who advised me before I set out

I hope this helps someone one day, please let me know if there is anything I have missed or if there is a better way of doing things

Good Day!
Ben
Current Jobs to do (30/12/19):
New Tires
Fix Radio/Cassette
Fix Central Locking
Bodywork

User avatar
doingitsideways
480 Expert
Posts: 659
Joined: Wed May 02, 2012 8:55 pm
Location: Manchester

Re: How to replace the rear washer nozzle - The Guide

Post by doingitsideways » Sun Jun 21, 2020 7:39 pm

Nice write up.

Only thing I'd add is that in situations similar to that, where I know it's fairly likely I'm going to lose a nut somewhere, but only possible to get one finger in, I've always found it useful to wind the nut to nearly off and used a lump pf blu tack on the end of my finger to keep hold of it.
Useful for refitting too.
"If you can't fix it with a hammer, it's an electrical fault!"
Hammers can't fix a 480!!!

Alan 480
480 Is my middle name
Posts: 1090
Joined: Sun Aug 28, 2011 9:03 am
Location: Aberdeen

Re: How to replace the rear washer nozzle - The Guide

Post by Alan 480 » Sun Jun 21, 2020 8:08 pm

C pillar trim on mine is with 'one way' plastic clips that sit in the two circular holes, so over the years things have changed?

I think also same metod of attachment on the 93 & 95 versions??
Alan

480 ES 2litre x 2, C30 1.8ES, SS1

User avatar
MisterH
Can tell where the 480 was built
Posts: 362
Joined: Sat Nov 24, 2018 6:15 pm
Location: Stockbridge

Re: How to replace the rear washer nozzle - The Guide

Post by MisterH » Sun Jun 21, 2020 8:42 pm

doingitsideways wrote:
Sun Jun 21, 2020 7:39 pm
Nice write up.

Only thing I'd add is that in situations similar to that, where I know it's fairly likely I'm going to lose a nut somewhere, but only possible to get one finger in, I've always found it useful to wind the nut to nearly off and used a lump pf blu tack on the end of my finger to keep hold of it.
Useful for refitting too.
That's brilliant, shall try and remember that for next time
Current Jobs to do (30/12/19):
New Tires
Fix Radio/Cassette
Fix Central Locking
Bodywork

User avatar
dragonflyjewels
480 Connoisseur
Posts: 856
Joined: Sat Dec 18, 2010 10:38 am
Location: Norfolk

Re: How to replace the rear washer nozzle - The Guide

Post by dragonflyjewels » Sun Jun 21, 2020 8:44 pm

On the subject of losing the nut down inside, I'd stuff a good sized rag in to form a bung for the nut to land on.
Sylvia

Snazzy - 1993 Paris Blue ES red dipstick 2.0i bought 2001
Lethal Lily - 1991 White Turbo
hubby has
Sven - 1994 Dark Green GT
Evil Eva 1992 Paris Blue Turbo

User avatar
MisterH
Can tell where the 480 was built
Posts: 362
Joined: Sat Nov 24, 2018 6:15 pm
Location: Stockbridge

Re: How to replace the rear washer nozzle - The Guide

Post by MisterH » Mon Jun 22, 2020 11:00 am

Alan 480 wrote:
Sun Jun 21, 2020 8:08 pm
C pillar trim on mine is with 'one way' plastic clips that sit in the two circular holes, so over the years things have changed?

I think also same metod of attachment on the 93 & 95 versions??
I did spot some of those in the middle of my one, but was unsure of their purpose, so they will require you to lever the trim piece out with a screwdriver
Current Jobs to do (30/12/19):
New Tires
Fix Radio/Cassette
Fix Central Locking
Bodywork

User avatar
Van
480 Connoisseur
Posts: 816
Joined: Sun Sep 23, 2007 8:27 am
Location: Ich bin ein Berliner!

Re: How to replace the rear washer nozzle - The Guide

Post by Van » Mon Jun 22, 2020 1:35 pm

dragonflyjewels wrote:
Sun Jun 21, 2020 8:44 pm
On the subject of losing the nut down inside, I'd stuff a good sized rag in to form a bung for the nut to land on.
That is really clever. A sponge also will do.
after over 10 years parted with the 1995 Volvo 480 ES 2.0
