PAS pipe corrosion

Post by zapcity » Tue Apr 19, 2022 9:13 am

Hi all,

Pas pipes have a small leak (corrosion).

Anyone have any options to get replacements?

I guess custom made is the only option now.

Thanks.
1994 480GT - arrived!!
XC60 and XC70 for the daily grind.
C70 Coupé Convertible for the sunny days. Should sell it but can't!

jifflemon
480 Is my middle name
Posts: 2148
Joined: Sat Dec 17, 2016 11:03 am

Re: PAS pipe corrosion

Post by jifflemon » Tue Apr 19, 2022 11:59 am

Is this on the GT? If so, you’re going to struggle getting a S/h one as they were only fitted on gt/celeb as the ac models had different pipework.
Have found a couple of places that will remake them but your getting close to £250

zapcity
Knows an Aerodeck isn't a 480
Posts: 251
Joined: Wed Nov 09, 2016 4:01 pm
Location: Ipswich, Suffolk

Re: PAS pipe corrosion

Post by zapcity » Tue Apr 19, 2022 12:57 pm

Thanks Jeff. Yes for the GT. I assumed that the AC would make a difference but not in a good way!

If you have any sources for replacements I would appreciate a pointer.

Thanks for your damper info. on some other posts. Managed to find some but it's not been easy. Looks like Bilstein has discontinued the B4s now.
1994 480GT - arrived!!
XC60 and XC70 for the daily grind.
C70 Coupé Convertible for the sunny days. Should sell it but can't!

User avatar
Jay-Kay-Em
Can tell where the 480 was built
Posts: 321
Joined: Tue Nov 27, 2012 10:42 pm
Location: Huntingdon
Contact:

Re: PAS pipe corrosion

Post by Jay-Kay-Em » Tue Apr 19, 2022 4:19 pm

Hi Zapcity,

Same with most 480 problems - not available new and all the cars sat in breakers have the same issue!

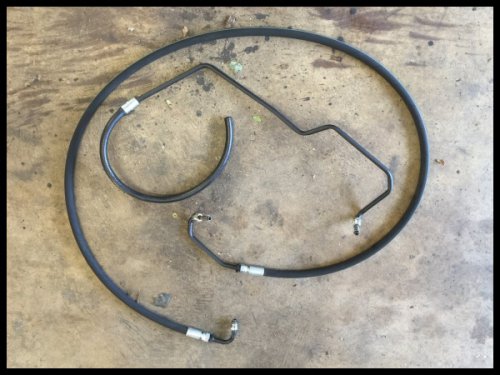

Not for the 480, but for the Mk2, I had custom pipes made at my local hydraulics shop. This was Kemptson Radiators near Bedford.

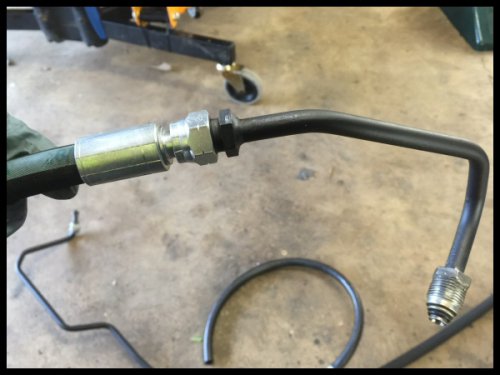

They used what they could of the tails, and converted to flexi...


I chose the custom route here because everything on the hose, the rubber, the unions, the pipe, were all shot.

You won't get any change from £200 though.

The 480 was different, as the rubber was fine. I just had excessive corrosion down by the front crossmember...


I chose to fix myself by cutting and joining with over-sleeving as they are just steel (using a mig).


Chuck any garage beer money and they can sort this if they know how to weld.

I also felt more comfortable to weld repair as it was just the return line - they run at much lower pressures. Thankfully my main pressure pipes were fine due to the engine leaking oil on them for 25 years!

The return line has the wiggly oil cooler section (pictured below). It is probably this that has rotted out as its so vulnerable to forward facing road salt & dirt.


Everyone normally says "just go to Pirtek". However, my branch (Peterborough) is a mixed bag. One guy was really helpful and custom made my turbo oil feed pipe. Another staff member just wasn't interested in my 480 PAS pipes; another contributory factor to me welding (that and it being low pressure return only).

Not all pas pipes are the same due to a/c and model years. Sorry if my pics don’t match yours.

Good luck searching. You may find that miracle car at the breakers.

Alan 480
480 Is my middle name
Posts: 1364
Joined: Sun Aug 28, 2011 9:03 am
Location: Aberdeen

Re: PAS pipe corrosion

Post by Alan 480 » Tue Apr 19, 2022 4:41 pm

I'm thinking of removing and getting a local hydraulic shop for fittings.
sadly the spare rack I have has different fittings

real bummer is that I have BOTH the fitting(s) for rack end with long flexible and the steel tube at pump end, just need a coupling to go from the flexible to hard pipe to make a COMPLETE pressure pipe

PS not sure if any real value of the 'cooler' section if it wasn't there on early cars, also ABZ is not exactly 'the hottest place in UK' :-)
Alan

480 ES 2litre x 2 (1 x Normal, 1 x 'Celebration' ? ), C30 1.8ES, SS1

zapcity
Knows an Aerodeck isn't a 480
Posts: 251
Joined: Wed Nov 09, 2016 4:01 pm
Location: Ipswich, Suffolk

Re: PAS pipe corrosion

Post by zapcity » Wed Apr 20, 2022 11:43 am

Thanks Jay.

A couple of mech. mates have recommended hosequip in Colchester just down the road from me.

I'll give them a shout and take it from there.

Thanks all for the advice. Much appreciated.
